COMMERCIAL BUCKET ELEVATORS
FARM BUCKET ELEVATORS
BUCKET ELEVATOR

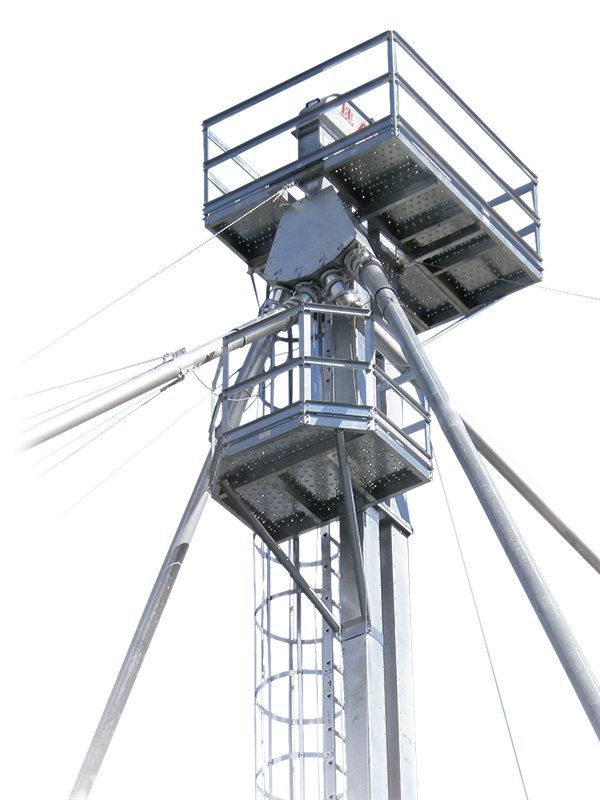

RAD Equipment ladders and platforms provide easy and safe access to your equipment.
- Corrosion-resistant galvanizedsteel elevator
- Sturdy and made to last
- Pre-assembled drive and service platformfor easier installation
- Wide selection of distributorheads adapted to your project
- 150 to 15 000 bushels/hour (BPH)
- Over 35 years at your service
- Manufactured according to your needs
TECHNICAL SPECIFICATION

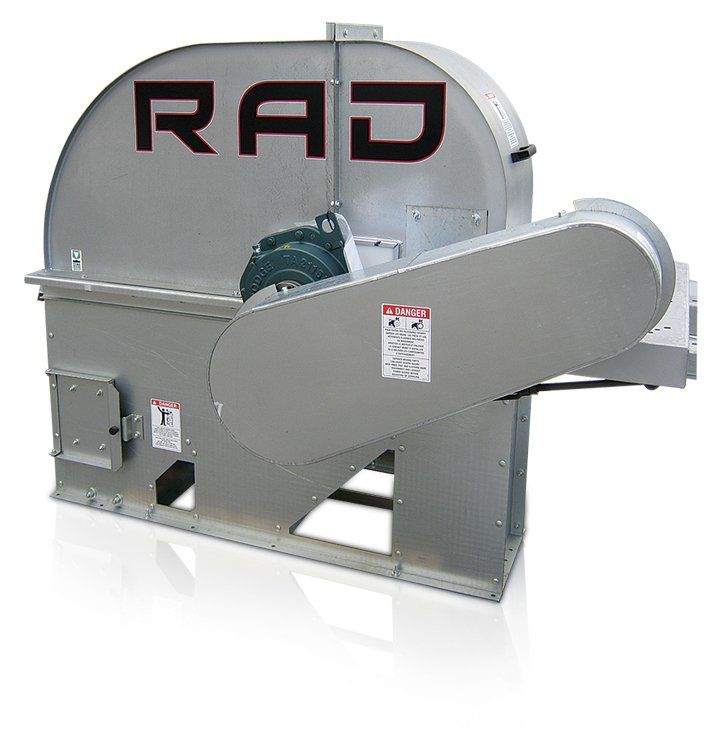

ELEVATOR HEAD
- 3D designed and CNC manufactured
- 10-16 ga galvanized steel
- Roller bearing with horizontal and vertical adjustment
- Inspection door on each side
- Dust protection at shaft opening
- Easily accessible hood
- Abrasion-resistant composite coating (Rhino) available upon request
- Dodge brand drive and bearings with backstop included

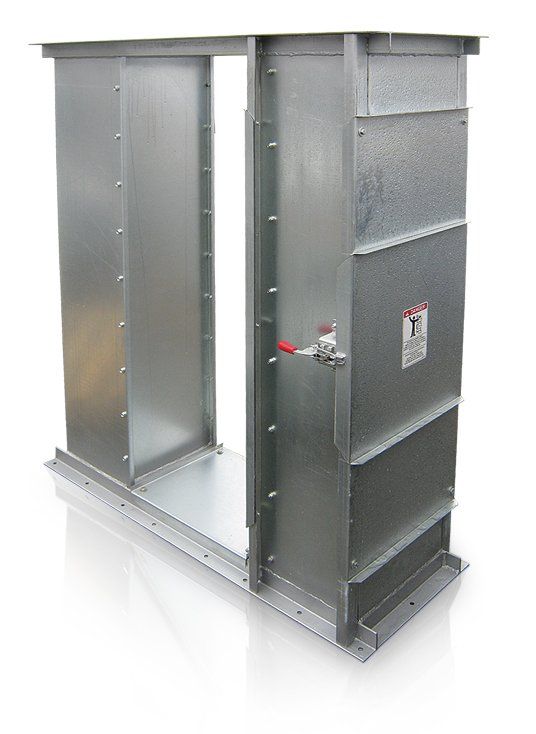

ELEVATOR LEG
- 3D designed and CNC manufactured
- 10-14 ga galvanized steel, bolted
- Leg with inspection door
- PVG belt included, rubber model available
- Poly bucket made to last

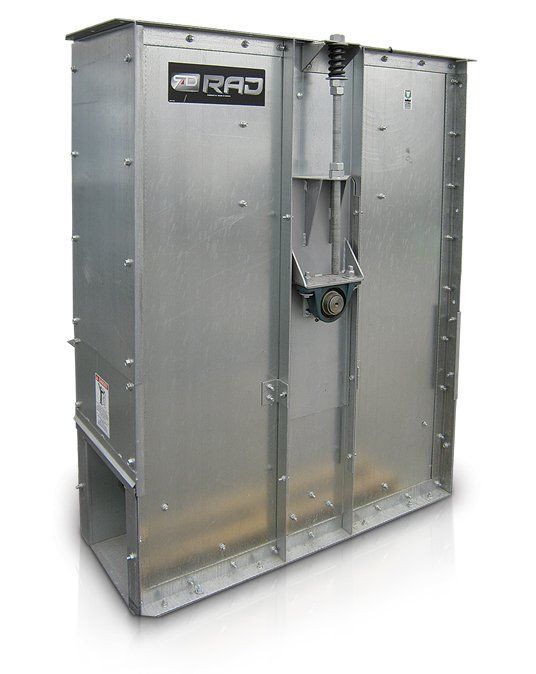

ELEVATOR BOOT
- 3D designed and CNC manufactured
- 8-14 ga galvanized steel
- Heavy-duty roller bearings
- Belt tensioner that improves belt traction and service life
- Self-cleaning and adjustable boot pulley
- Dust protection at shaft opening
- Self-cleaning boot available
- Drawer on boot for easy cleaning

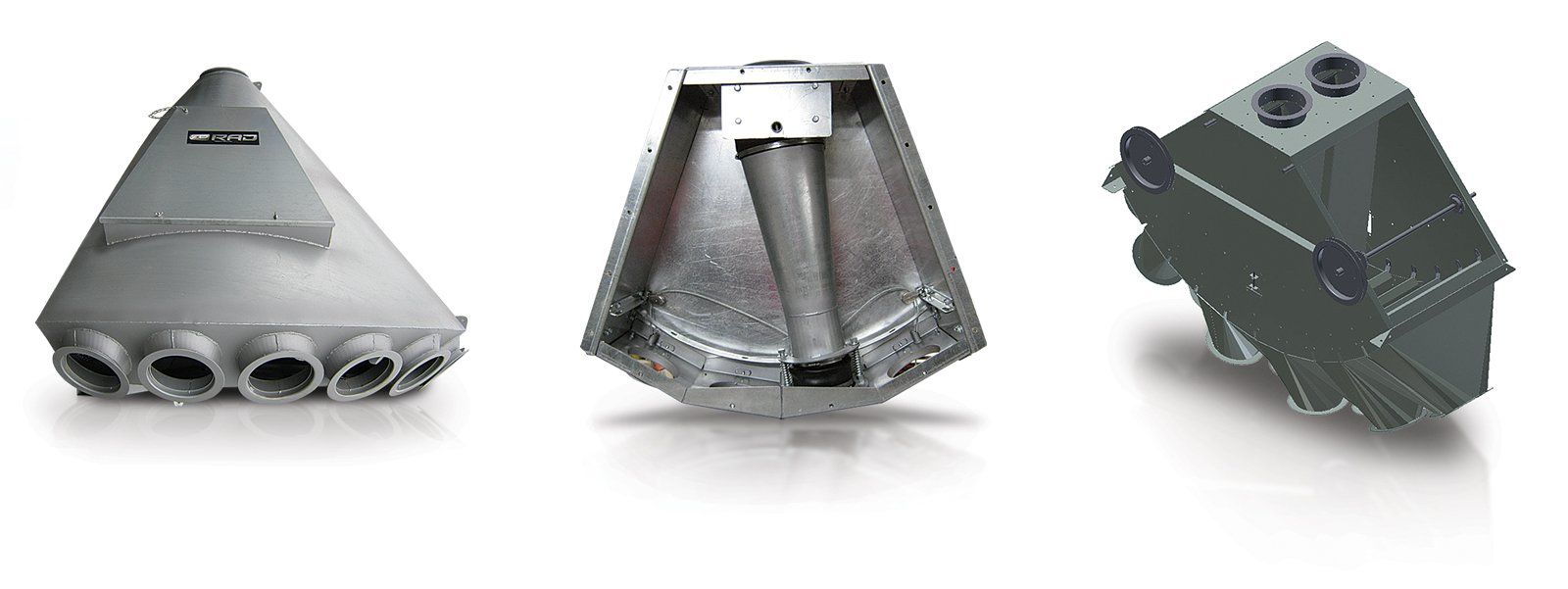

DISTRIBUTION HEADS
RAD Equipment’s distributor heads are made of galvanized steel. Their sturdinessand the variety of heads available make RAD Equipment a leader in its field.

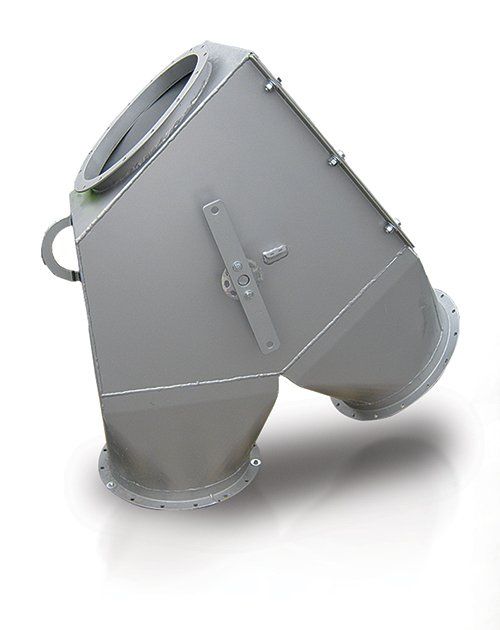

SPOUTING ACCESSORIES
RAD Equipment offers a wide rangeof chute accessories to meet yourmost specific needs:
- 2- or 3-way valves
- In-line decelerator Cushion box
- Cushion box
- Galvanized tube
- Transitions and several others
