EN-MASSE DRAG
EN-MASSE DRAG

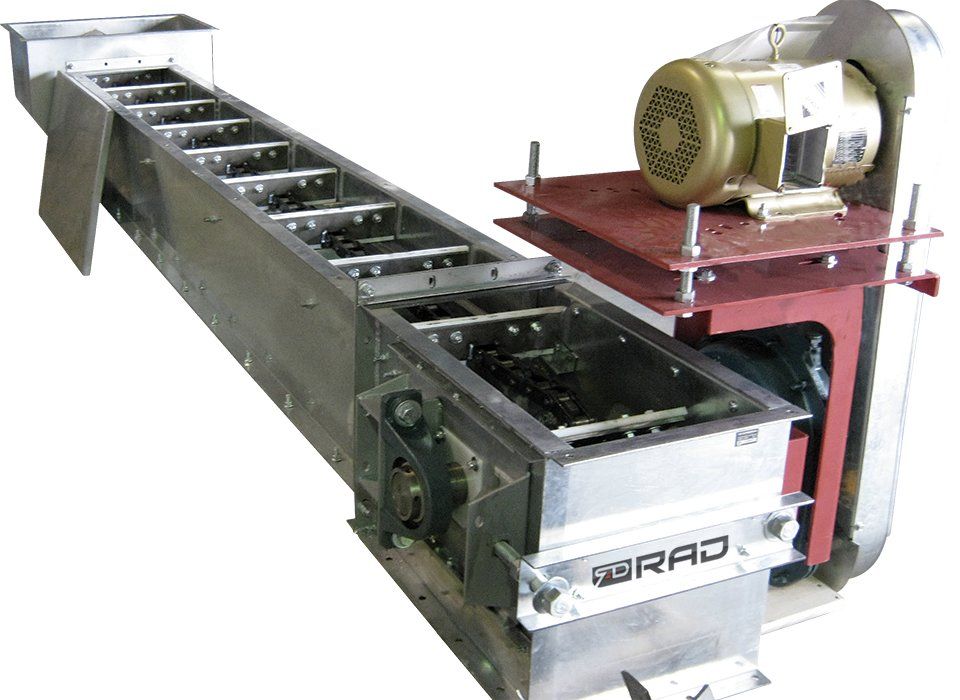

FLAT BOTTOM LEVEL DRAG EN-MASSE CONVEYOR
MOVE HIGH VOLUMES OF BULK MATERIAL EVENLYAND EFFICIENTLY WITH THE EN-MASSE DRAG CONVEYOR
- High performance extra heavy-duty galvanized construction built to last
- 1500 to 15 000 bushels/hour
- Tail section 8-10ga frame with heavy duty A.R Steel bottom plate (1/8’’-3/16’’) standard
- Trough section 8-10ga bottom and sides standard
- Abrasion resistant A.R steel (Domex) bolted wear plate available on Trough section and receiving hopper
- Head section 8-10ga housing with heavy duty chain tension take-up system
- Durable Cast iron steel sprockets, split sprocket available
- Heavy duty pillow block Dodge bearings with turned groundand polished shaft
- Split bearing available
- Dust and weather tight, maintenance friendly
- Highly resistant 12ga type 304 stainless steel return rail
- The smaller paddle, featured on En-Masse models, enables a higher capacity
- Each UHMW paddle is bolted to a formed steel backer plate welded onto the chain
- 81X and 81XH roller welded chain is engineered for durability, reliability and longevity. Solid bushing, solid roller and quad staked riveting
- Dodge belt speed gear reducer standard and motorized direct drive torque-arm reducer available
TECHNICAL SPECIFICATION
