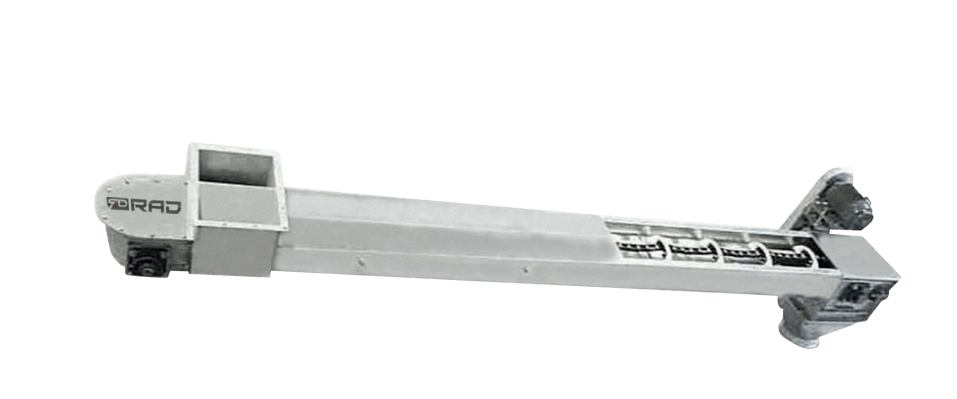

ROUND BOTTOM DRAG
ROUND BOTTOM DRAG
ROUND BOTTOM DRAG
THE ROUND BOTTOM PADDLE AND CURVED BOTTOM CONVEYOR ENSURE ACOMPLETE CLEANOUT, LESS GRAIN DAMAGE AND HIGH EFFICIENT OPERATION.
- High performance extra heavy-duty galvanized construction built to last
- 6’’ to 18’’ diameter conveyor
- 600 to 10 000 bushels/hour

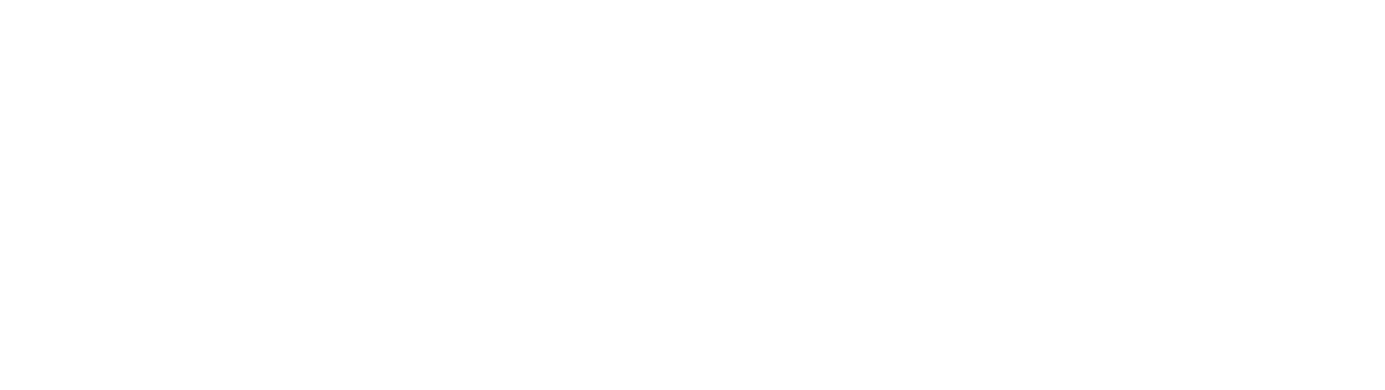

- 15 degrees short radius inclined section available (24’’-36’’)
- Self-Cleaning hot dip galvanized Tail section 10-12ga frame, liner available
- Abrasion resistant A.R steel (Domex) bolted wear plate available on receiving hopper
- 8-14ga pre-assembled trough section galvanized, UHMW round formed liner available
- Head section 8-12ga housing with heavy duty chain tension take-up system, shaft up to 3-15/16’’
- Double chain system available on the 18’’ conveyor
- Heavy duty cast sprocket
- Heavy duty pillow block Dodge bearings with turned ground and polished shaft
- Dust and weather tight, maintenance friendly
- Highly resistant 12ga type 304 stainless steel return rail

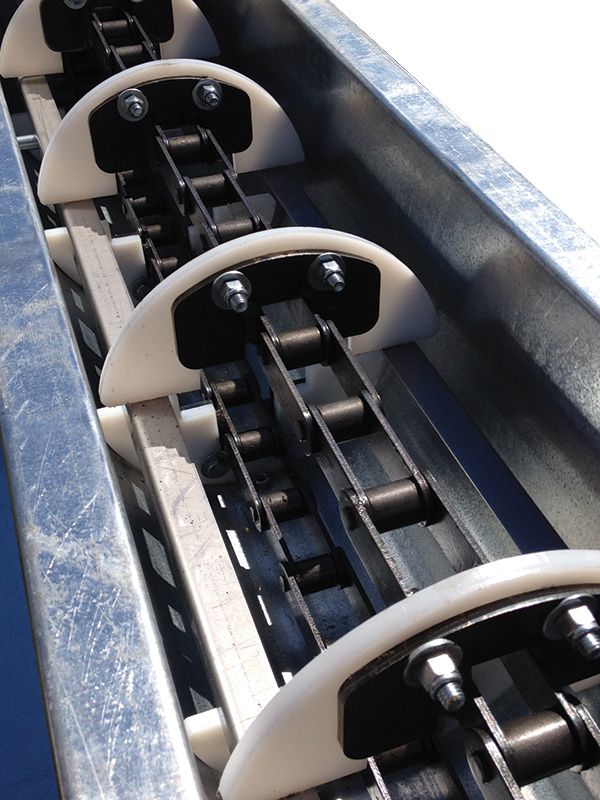

- UHMW paddle reducing friction with no metal-to-metal contact.
- Each UHMW paddle is bolted to a formed steel backer plate welded onto the chain
- 81X and 81XH roller welded chain is engineered for durability, reliability andlongevity. Solid bushing, solid roller and quad staked riveting
- Dodge belt speed gear reducer standard

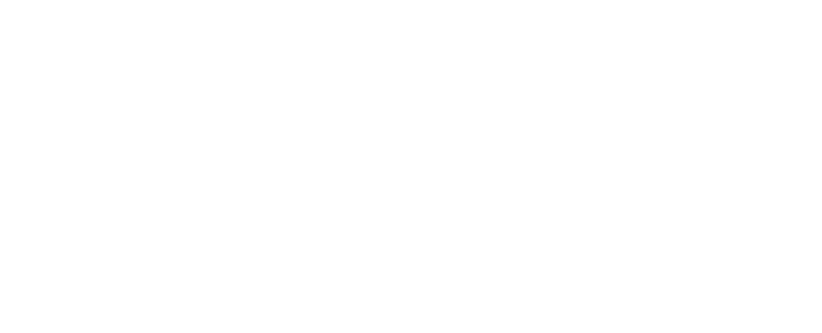

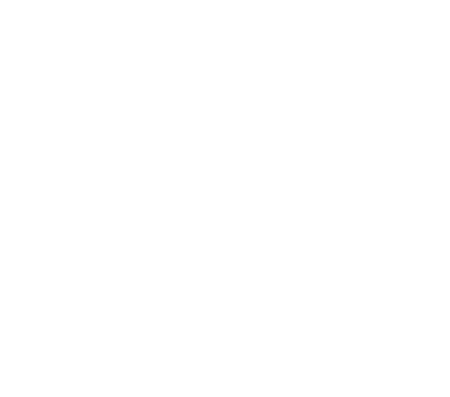

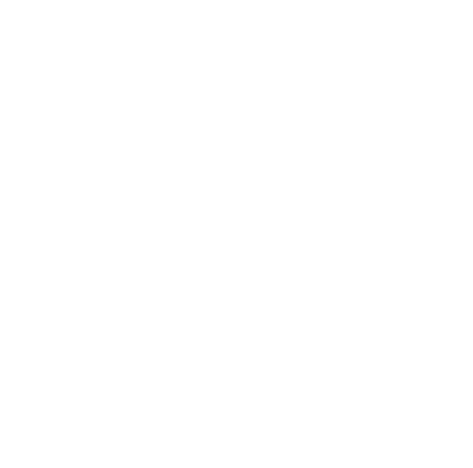

TECHNICAL SPECIFICATION
